Book Appointment Now
Powered by advanced nano-dispersion technology, our Super-dispersed TiO2 Masterbatch dramatically boosts whiteness, hiding power, and gloss. It combines Nano-dispersion, Eco & cost-effective, high weather resistance, high opacity, pure, and optimized processability.

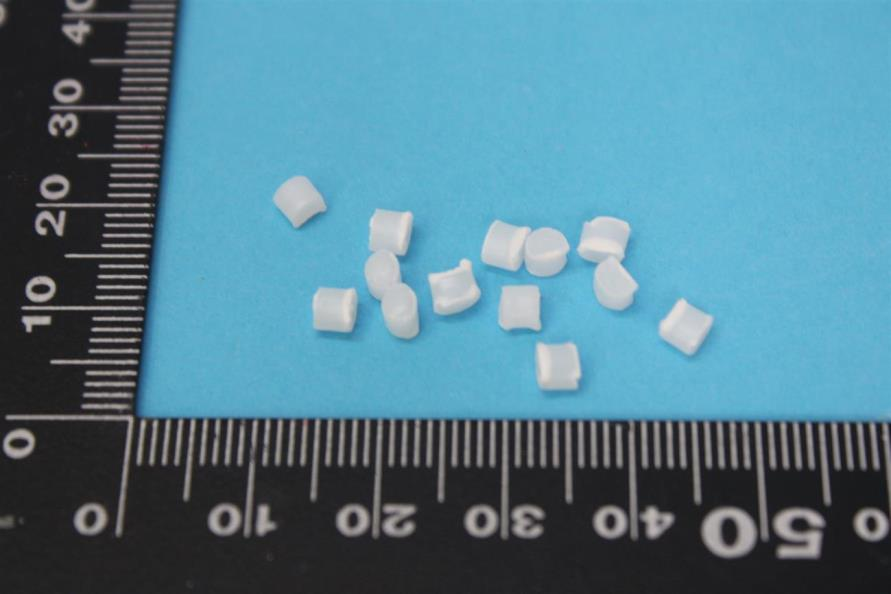

| Chemical Name | TiO2 Masterbatch |
| Brand | DEWOPP |
| Product Model | DW-1070 |
| Product Functions | Pigmentation, Opacity, Weather Resistance |
| Manufactured By | SIVO xxxx |
| Synonyms | TiO2, Titania Dioxide Bead Pre-dispersed TiO2 Masterbatch |
Product Sales Support
Have questions about our product? We’re here to help.
Product Technical Support
If you require technical assistance, we’re ready to assist you.
Request Samples
Contact us for product sample, free of charge.
Documents
| Document Name | Update Time | |
|---|---|---|
| Techinical Data Sheet | May 12,2026 | |
| Safty Data Sheet | May 12,2026 |
Composition
| Chemical Name | Chemical Formula | Content | CAS No. |
|---|---|---|---|
| Titanium Dioxide | TiO2 | 65-75% | 13463-67-7 |
| EBS Wax | C38H76N2O2 | 10%-15% | 110-30-5 |
| Polyethylene (PE) | (C2H4)n | 8-10% | 9002-88-4 |
| Others | 2-5% |
Key Properties
| Item | Value | Units | Test Method/Conditions |
|---|---|---|---|
| Titanium Dioxide | 65-75 | % | Rutile Titanium Dioxide |
| Opacity Strength | 94 | % | |
| Tinting Strength | 88.7 | % | Whiteness |
| Relative Density | 2.33 | g/cm3 | ISO 1183 / 23 ℃ |
| Melting point | 135 | ℃ | ISO 75 /1.8MPa |
| Heat Resistance | 350 | ℃ | Maximum Temperature Resistant |
| Processing Temperature | 150-300 | ℃ | Processing Temperature |
| Whether Resistance | 8 | Grade | |
| Transfer Resistance | 6 | Grade | |
| Melt Flow Rate | 25 | g/10min | ISO 1133 |
| Volatile Matter | ≤0.2 | % | 105℃ |
Product Performance Brief · Part 2
DW-1070 Performance Properties
Beyond optical quality, DW-1070 delivers the processing and durability characteristics required for demanding plastics applications. This brief covers three core performance areas: hiding power (opacity), processing stability (TGA), and outdoor weather resistance.
Super-dispersed TiO2 Masterbatch
PVC / PE / PP Compatible
Benchmarked vs TiO2(616S)
ISO 4892-3 weathering
01
Opacity Strength
Hiding power · Transmittance and opacity comparison
Opacity is calculated as 100 × (1 − transmittance). Under identical loading, DW-1070 matches the reference rutile TiO2(616S) at 6.0% transmittance and 94% opacity — confirming that the super-dispersed masterbatch delivers equivalent hiding power while providing the dispersion and processing benefits described in later sections.
TiO2(616S) — Reference
DW-1070
· Test panel: 2 g pigment / 66 g PVC, 1 mm thickness
Key Finding
DW-1070 achieves the same opacity (94%) and transmittance (6.0%) as the rutile reference — full hiding power with no compromise.
| Product | Transm. | Opacity |
|---|---|---|
| TiO2(616S) Ref | 6.0% | 94% |
| DW-1070 Ours | 6.0% | 94% |
Equivalent Hiding Power
Matches premium rutile TiO2 opacity at the same loading — no need to increase pigment dosage when switching to DW-1070.
Consistent Across Substrates
Validated in both PP and PVC sheets at 1 mm thickness, demonstrating broad processing compatibility.
Cost-in-Use Advantage
Because dispersion is built into the masterbatch, formulators retain full opacity without the dispersion losses common to powder pigments.
02
Thermogravimetric Analysis (TGA)
Volatility profile · Weight retention vs temperature
Low volatile content is critical for high-temperature plastics processing — excess moisture or volatiles cause bubbles, silver streaks and surface defects. DW-1070 retains 99.5% of its initial mass even at 150 °C, confirming an ultra-low volatile content suitable for demanding extrusion and injection-molding conditions.
DW-1070 (PE masterbatch)
· Heating from 50 °C to 150 °C
Key Finding
Less than 0.5% mass loss across the full 50–150 °C processing window — avoiding bubbles and silver streaks during extrusion and molding.
| Temp (°C) | Weight (g) | Loss |
|---|---|---|
| 50 | 100.0 | 0.0% |
| 70 | 100.0 | 0.0% |
| 90 | 99.9 | 0.1% |
| 110 | 99.8 | 0.2% |
| 130 | 99.7 | 0.3% |
| 150 | 99.5 | 0.5% |
Defect-Free Processing
Ultra-low volatiles prevent bubble and silver-streak formation that commonly plague pigments with residual moisture.
Wide Process Window
Stable from 50 °C through 150 °C, covering standard PE, PP, and PVC processing temperatures.
Predictable Material Balance
Sub-0.5% mass loss means accurate gravimetric dosing — formulations stay on-spec without compensation factors.
03
Weather Resistance
Accelerated UV aging · ΔE color shift over time (ISO 4892-3)
Accelerated weathering simulates outdoor UV exposure for PVC window and door profiles. Three PVC specimens were tested in parallel under ISO 4892-3 — (1) unfilled PVC with no TiO2 addition as the negative control, (2) PVC with 3% reference rutile TiO2(616S), and (3) PVC with 3% DW-1070. Without any pigment, PVC undergoes rapid photodegradation: dehydrochlorination produces conjugated polyenes that drive ΔE up to ~25.6 at 168 hr — visibly yellow and surface-damaged. Both TiO2-stabilized samples stay below ΔE 1.3 over the same window, with DW-1070 tracking at or slightly below the reference (final ΔE 1.18 vs 1.22).
DW-1070 (3% in PVC)
TiO2(616S) (3% in PVC)
None addition (PVC only — control)
· Lower ΔE = better color retention
Key Finding
At 168 hr: DW-1070 ΔE 1.18 vs reference 1.22 — a ~22× improvement over unfilled PVC (ΔE 25.6). Both pigmented samples deliver outdoor-grade color stability; DW-1070 slightly outperforms the rutile reference.
| Hours | None addition | Ref (616S) | DW-1070 |
|---|---|---|---|
| 24 | 3.20 | 0.15 | 0.14 |
| 48 | 6.50 | 0.42 | 0.42 |
| 72 | 10.40 | 0.62 | 0.60 |
| 96 | 14.80 | 0.96 | 0.94 |
| 168 | 25.60 | 1.22 | 1.18 |
~22× UV Protection
At 168 hr exposure, DW-1070 PVC sits at ΔE 1.18 vs ΔE 25.6 for unfilled PVC — converting visible yellowing and surface damage into virtually unchanged white.
On-Par with Premium Reference
Color shift tracks the rutile TiO2(616S) reference across the full 168 hr window, ending slightly below it (1.18 vs 1.22) under ISO 4892-3.
Long-Term Color Stability
Final ΔE ≈ 1.2 keeps finished parts visually consistent over their service life — critical for warranty-backed window and door systems.
04
Melt Rheology
Viscosity vs shear rate · 70% TiO2 in 12 MFI LDPE at 190 °C
Melt viscosity directly controls how a TiO2-loaded compound behaves during extrusion, coating, and film-blowing. Two samples were tested at identical loading — 30% LDPE (12 MFI) as the carrier resin plus 70% of either (1) DW-1070, Super-dispersed TiO2 Masterbatch or (2) reference rutile titanium dioxide, TiO2(616S). At 190 °C, DW-1070 shows a much flatter viscosity profile than the reference — starting at ~6575 Pa·s vs ~20800 Pa·s at low shear, and converging at high shear. This makes DW-1070 especially suited to high-temperature extrusion coating and lamination (e.g., flexible packaging) where high speeds and high temperatures otherwise risk pinholes, cracks, and surface defects in the finished film.
DW-1070 (Super-dispersed TiO2 Masterbatch) · 6575 Pa·s @ 1 s⁻¹
TiO2(616S) — Rutile reference · 20800 Pa·s @ 1 s⁻¹
· 30% LDPE (12 MFI) + 70% pigment · 190 °C
Key Finding
At 1 s⁻¹, DW-1070 viscosity is ~68% lower than the reference (6575 vs 20800 Pa·s). The flatter shear-thinning profile means less viscosity swing across the processing window — fewer pinholes and cracks in extrusion-coated and laminated films.
| Shear (s⁻¹) | Ref (616S) | DW-1070 |
|---|---|---|
| 1 | 20800 | 6575 |
| 10 | 4243 | 2182 |
| 100 | 871 | 723 |
| 1000 | 178 | 243 |
Easier High-Speed Processing
Lower low-shear viscosity reduces motor load and pressure spikes during extrusion coating and film blowing — protecting line throughput at high TiO2 loadings.
Fewer Film Defects
A flatter viscosity curve means less abrupt shear-thinning, which translates into fewer pinholes, cracks, and surface imperfections in laminated and coated films used for packaging.
Higher Loading Without Penalty
Even at 70% TiO2, DW-1070 stays processable on standard LDPE lines at 190 °C — enabling concentrated masterbatches that reduce dosing volume downstream.
05
Internal Mixer Power Curve
Power vs time · DW-1070 (pre-dispersed) vs TiO2(616S) raw powder
Internal mixer power consumption is a direct measure of how much energy is needed to incorporate and disperse a pigment into the resin. Two samples were compared in an internal mixer (Banbury / BR) — 30% LDPE (12 MFI) carrier resin plus 70% of either (1) DW-1070, Super-dispersed TiO2 Masterbatch or (2) reference rutile titanium dioxide, TiO2(616S). The reference powder needs full wetting and dispersive mixing — peak power climbs to ~27 kW with fusion at ~41 s. DW-1070, already pre-dispersed in carrier resin, only requires distributive blending — peak power stays around ~13 kW with fusion at ~10 s, then settles to a low, steady ~8 kW.
DW-1070 (Super-dispersed TiO2 Masterbatch)
TiO2(616S) — Rutile reference
· 30% LDPE (12 MFI) + 70% pigment
Key Finding
DW-1070 reaches fusion in ~10 s vs ~41 s for the reference, and peak motor power drops from ~27 kW to ~13 kW — ~52% lower peak energy and ~4× faster cycle time. This translates directly into higher throughput and lower electricity cost per kilogram of compound.
| Metric | Ref (616S) | DW-1070 |
|---|---|---|
| Peak power | 27 kW | 13 kW |
| Time to peak | 22 s | 6 s |
| Fusion time | 41 s | 10 s |
| Steady-state power | 12 kW | 8 kW |
~52% Lower Peak Power
Pre-dispersed pigment means no need for high-energy dispersive mixing — peak motor load drops dramatically, protecting motor and gearbox from overload trips.
~4× Faster Fusion
Fusion in ~10 s instead of ~41 s shortens cycle time, multiplies batch throughput on the same equipment, and reduces residence time at high temperature.
Lower Energy & Cost per kg
Lower peak + shorter cycle = significantly less kWh per kilogram of compound, with the bonus of less wear on rotors and chamber walls.
